Features

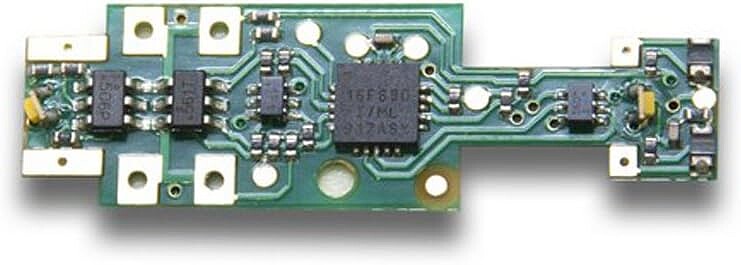

• This 6 function decoder is rated at 1.5A (2A peak) and has 6 FX3 functions at .5A.
• Supports Digitrax FX3 functions and 14, 28 or 128-step speed control.
• Other features include
• Torque compensation for smooth, silent operation.
• Momentum with acceleration and deceleration.
• User selectable normal direction of travel.
• Switching speed feature for easier and faster access to yard speeds.
• Three-step speed tables set start, mid and max voltage for custom control.
• 28-step speed tables with 256 level resolution for precise control.
• SuperSonic(TM) motor drive for silent operation.
• FX3 function outputs for prototypical lighting effects
• Constant brightness lighting with directional or independent control
• Realistic effects such as ditch lights, Mars lights, strobes, and more.
• Dynamic and static qualifiers operate functions based on direction, F0 on or off, loco direction and F0, and whether loco is moving.
• Function remapping for custom setup.
• Master light switch turns off all lights & functions with one keystroke.
• Advanced consist function controls
• Transponder equipped
• All-mode programming with operations mode read back (reads back CV values on the mainline)
• Decoder reset CV with or without speed table reset.
• Motor isolation protection prevents decoder damage.
• Basic, advanced & universal consisting
• Two- or four digit addressing
• DCC compatible
• Works with most DCC-ready Z, N, and HO Scale locomotives up to 18V track voltage
• FCC Part 15, Class B RFI compliant
• Decoder lock
