35'' Wingspan DH4 Wooden Aircraft Kit (suitable for elec R/C)
Item Number: dum1812
35'' Wingspan DH4 Wooden Aircraft Kit (suitable for elec R/C)
Item Number: dum1812
Now $71.78
$89.95
Earn 0 Rewards Points
Discontinued
Not Available For Purchase
About This Item
Product Details

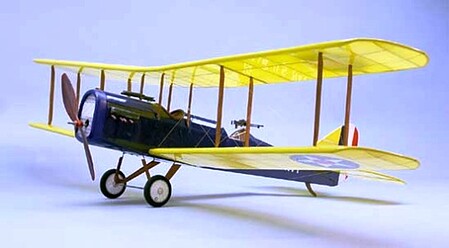

This is the radio controlled, electric powered Dumas DH-4 Park Flyer Kit.
Product Rank
Includes
All balsa, lightweight colored (blue and yellow) tissue covering, two 2" (51mm) diameter plastic main wheels, tail wire skid, CA hinges and all hardware to comlete the kit, instruction manual, two full-size plan sheets, and vacuum molded cowling.
Features
Construction: Hand selected laser cut balsa Vacuum molded cowl Rudder and Elevator Control: Wire pushrod Servo Placement: Mounted in rails on fuselage Landing Gear: 1/16" diameter wire front, tail wire skid requires bending.
Specifications
- Length: 25" (635mm)
- Wingspan: 35" (889mm)
- Wing Area: 329sq.in. (22.74 sq dm)
- Airfoil: Flat bottom
- Center of Gravity (CG): 1-13/16" (46mm) back from the leading edge of the TOP wing
- Control Throws-
- Elevator, Up and Down: 5/8" (11mm)
- Rudder, Left and Right: 3/4" (20mm)
- Dumas Product Number: 1812
