Nieuport 28 WW1 Fighter- Electric
Item Number: dum1819
Discontinued
Not Available For Purchase
About This Item
Product Details

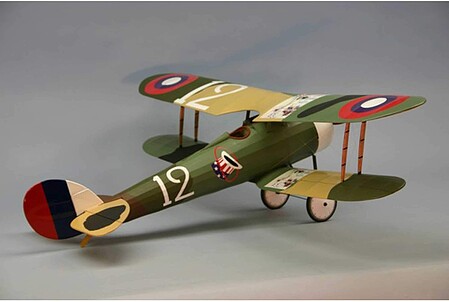

This is the radio controlled, electric powered Dumas Nieuport 28 WWI Fighter Park Flyer Kit. For beginning to intermediate modeler/fliers.:.
Product Rank
Includes
- Dumas Nieuport 28 Kit with covering tissue, decals, landing:
- gear, wheels, instructions, two plan sheets:
Features
- Construction: Laser cut balsa.:
- Covering: Tissue, light and dark green in color.:
- Cowl: Vacuum molded.:
- Landing Gear: .062 (1.6mm) diameter wire, requires bending.:
- Wheels: Two molded plastic, 3 (76mm) diameter'.:
- Decals: Two sheets peel and stick vinyl.:
Requirements & Suggestions
- Radio: 3-channel with micro receiver & two sub micro servos,:
- Motor: Speed 280 w/2.8:1 or higher gear drive, GPMG0300, GPMG0204:
- Electronic Speed Control: 5A with BEC, GPMM2005:
- Battery: 3-cell (11.1V) 640mAh LiPo, GPMP0705:
- Battery Charger: LiPo compatible, GPMM3010:
- Propeller: 9x4.7 electric, GWSQ2018:
- Building and field equipment:
Specifications
- Wingspan: 35 (889mm):
- Length: 26.5 (673mm):
- Wing Area: 311 sq in (20.09 sq dm):
- Airfoil: Flat bottom:
- Center of Gravity: 2.40 (61mm) back from leading edge of wing at fuselage size
- Control Throws-:
- Elevator: 3/4 (19mm):
- Rudder: 7/8 (23mm)
- Dumas Product Number: 1819
